Manufacturing excellence at Avani Industry is driven by precision, process control, and complete in-house capabilities.

Description

Manufacturing excellence at Avani Industry is driven by precision, process control, and complete in-house capabilities. Our production systems are designed to deliver high accuracy, consistent quality, and full traceability at every stage from machining and gear manufacturing to inspection, packing, and dispatch. By combining advanced technology with disciplined execution, we ensure products that meet global standards and perform reliably in demanding applications.

Facilities

BFW Make VMC Model BMV60 TC20 Chakra

BT50 spindle taper with Alpha 18/6000 IP spindle motor
20-tool ATC with UCAM make Rotary table (4th axis)
High-pressure coolant through spindle (16 bar) with ring coolant around spindle
Integrated chip conveyor with chip trolley
Table size 600×1250mm with 1200kg load capacity
Rapid feed rate 32m/min | Traverse 1050×610×610mm
Positioning accuracy ±0.005mm | Repeatability ±0.003mm

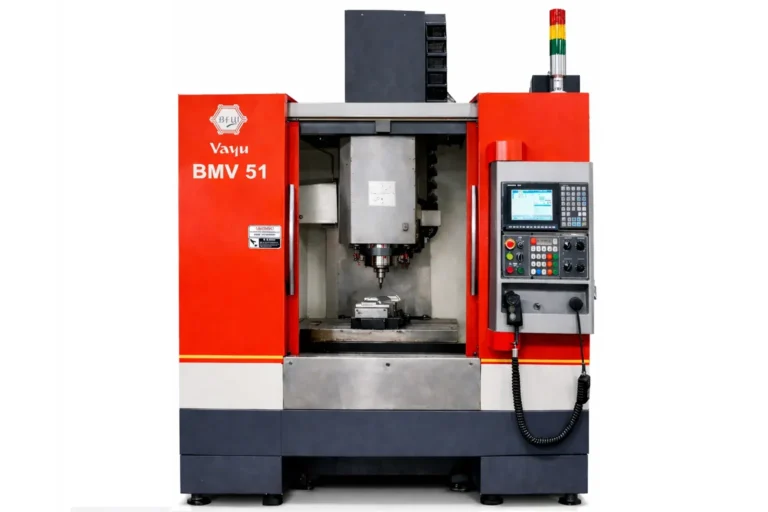

BFW Make VMC Model BMV51 TC24 Vayu

BT40 spindle taper with Alpha 18/6000 IP spindle motor
24-tool ATC with UCAM make Rotary table (4th axis)
High-pressure coolant through spindle (16 bar) with ring coolant around spindle
Integrated chip conveyor with chip trolley
Table size 510×1000mm with 800kg load capacity
Rapid feed rate 30m/min | Traverse 800×510×510mm
Positioning accuracy ±0.005mm | Repeatability ±0.003mm

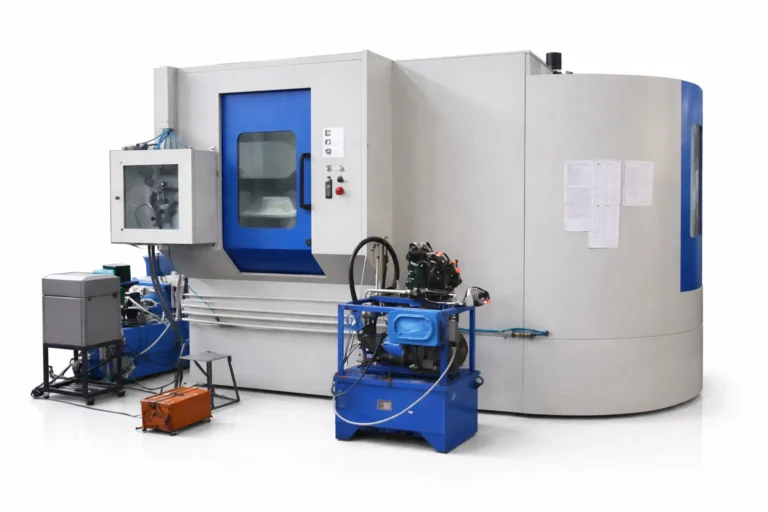

TAL Make HMC Model HP50

BT40 spindle taper with 15/18.5 kW spindle motor
40-tool ATC with 2-pallet automatic pallet changer and Golden Sun rotary table (1° indexing)
High-pressure coolant through spindle (20 bar) with ring coolant around spindle
Integrated chip conveyor with chip trolley
Table size 500×500mm | Work envelope 630×700mm | Load capacity 500kg
Rapid feed rate 40m/min | Traverse 700×500×560mm
Positioning accuracy ±0.005mm | Repeatability ±0.003mm

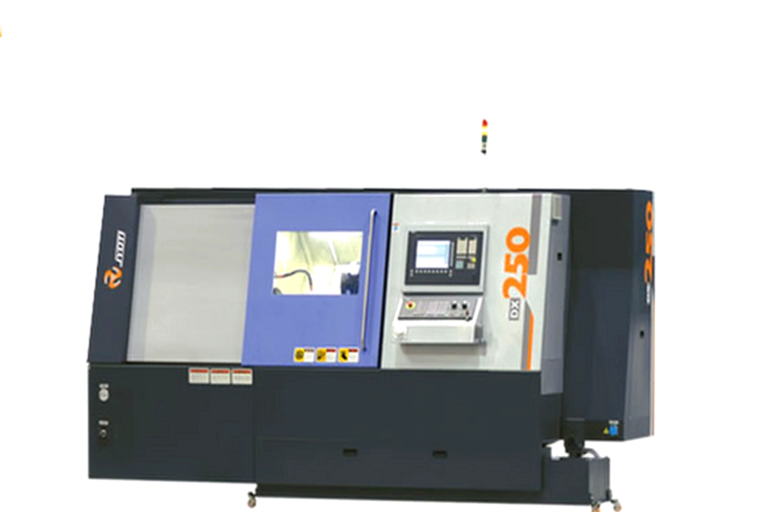

Jyoti Make Turning Centre Model DX 250 - 1000

Swing over bed 600mm | Max. turning length 1000mm | Turning dia. 300–480mm
Fanuc 0i Mate TD CNC control unit
AC main spindle motor 11/15 kW with P Series motor & A2-8 spindle
305mm dia. hydraulic chuck & cylinder
12-station bi-directional servo turret
Auto & manual coolant system
Centralised & programmable lubrication system

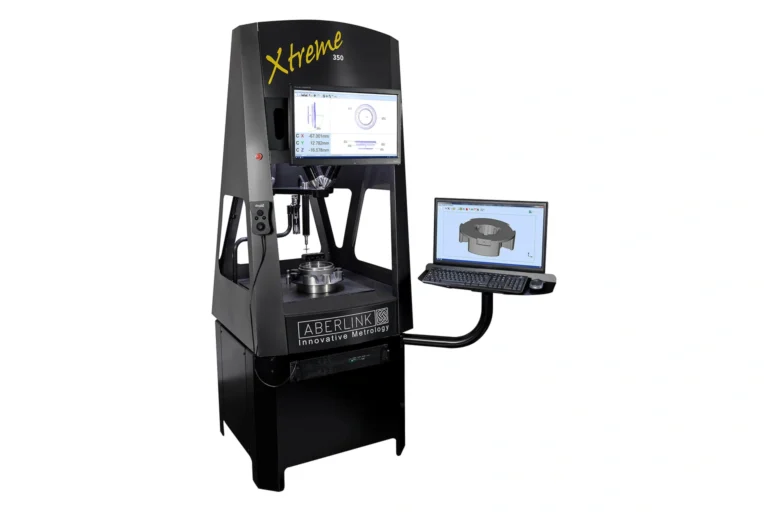

Aberlink Make CMM Model Xtreme350

Axis travel — X 350mm | Y 300mm | Z 200mm | Circular Ø359mm
Volumetric accuracy (3 + 0.4L/100) µm with 0.5µm scale resolution
Granite plate table for stable, vibration-free measurement
Max. velocity 500mm/sec | Max. acceleration 750mm/sec²
Operational temperature range 5–45°C
Overall size — 790×900×2030mm

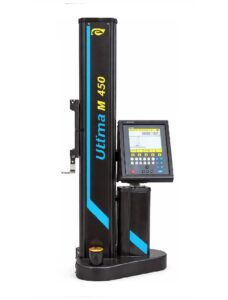

Electronica Make 2D Height Master Ulitma M450

Working range 0 to 450mm | Expandable range 765mm
Resolution - 0.0001 mm
Repeatability (2σ) - ≤ 0.0020 mm
Max. Permissible error - 2 + L / 330 µm (L= Length in mm)
Standard air cushion
16 Hours Battery Backup
Automatic Reading Storage

In House Gear Manufacturing

Packing & Shipping

Get a Quote

Need more help?

Contact Avani Industry for high-quality pumps and dependable engineering solutions.

Our office

94238 59807

Why Choose us

Our USPs

Precise Manufacturing

Advanced CNC, HMC, and VMC machining ensures tight tolerances, repeatability, and superior component accuracy.

In-House Gear Manufacturing

From bar cutting and CNC machining to gear grinding and profile inspection, every gear is manufactured and controlled in-house.

End-to-End Traceability

Each component is engraved with a unique serial number and every finished product is barcoded or QR coded for complete lifecycle traceability.

Rigorous Quality Systems

Comprehensive inspection facilities including CMM, hardness testing, surface finish testing, MPI, and spring testing ensure zero compromise on quality.

Reliable Testing & Assembly

PLC-based automatic testing, calibrated assembly equipment, and specialized component cleaning deliver ready products.
